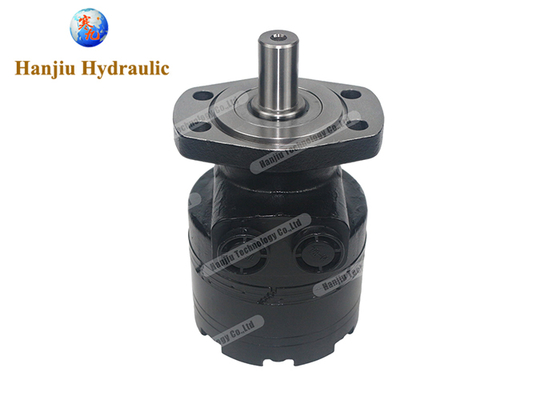

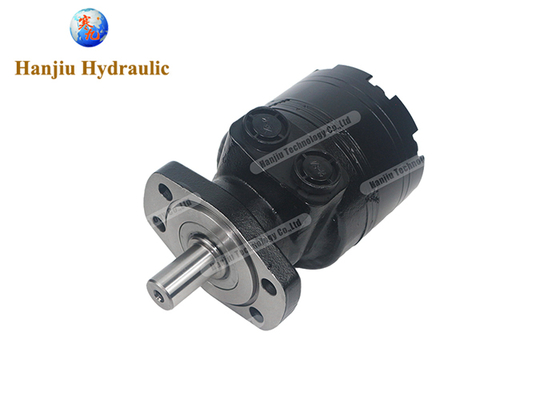

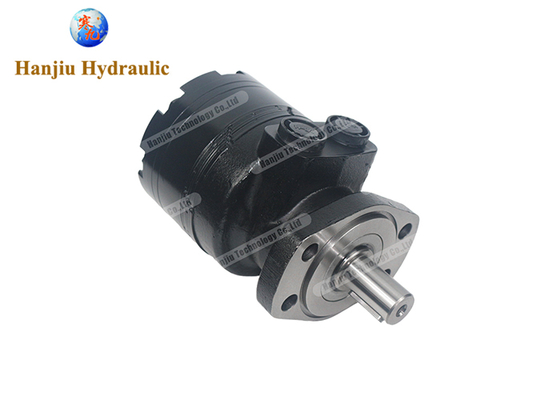

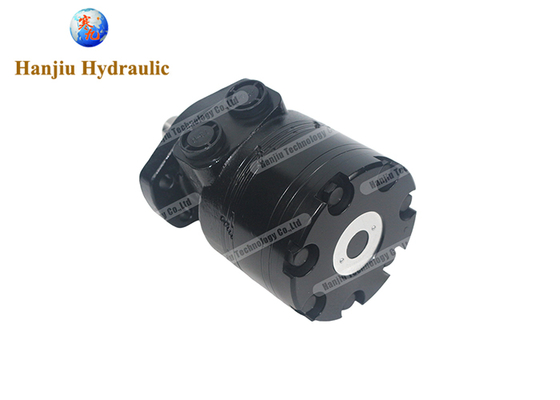

BMER-350-MS-RW Low Speed High Torque Gerotor Motor Fit Parker LSHT Applications, 350 ml/r, 4 bolt mounting
Product Attributes
| Attribute |
Value |
| Product |
Hydraulic Motor |
| Size |
350 ml/r |
| Flange |
4-bolt |
| Rotation |
CW |
Product Overview
Welcome to Hanjiu Hydraulic's selection of orbital hydraulic motors. Our BMER-350-MS-RW model serves as a high-quality direct replacement for Danfoss, Eaton Char-lynn, White, M+S, and Parker motors.
We offer a variety of low speed, high torque gerotor motors designed to replace Parker TB, TC, TE, TF, TG, and TK series motors.
Quick Specifications
- Model: BMER-350-MS-RW
- Displacement: 350 ml/r
- Shaft: 25.4mm straight
- Flange: 4-bolt mounting
- Rotation: Clockwise
Technical Specifications
| Type |
BMER 125 |
BMER 160 |
BMER 200 |
BMER 230 |
BMER 250 |
BMER 300 |
BMER 350 |
BMER 375 |
BMER 475 |
BMER 540 |
BMER 750 |
| Geometric displacement (cm³/rev.) |
118 |
156 |
196 |
228 |
257 |
296 |
345 |
371 |
462 |
540 |
745 |
| Max. speed (rpm) cont. |
360 |
375 |
330 |
290 |
290 |
250 |
220 |
200 |
160 |
140 |
100 |
| Max. speed (rpm) int. |
490 |
470 |
425 |
365 |
350 |
315 |
270 |
240 |
195 |
170 |
120 |
| Max. torque (N•m) cont. |
325 |
450 |
530 |
625 |
700 |
810 |
905 |
990 |
1085 |
980 |
1050 |
| Max. torque (N•m) int. |
380 |
525 |
600 |
710 |
790 |
930 |
1035 |
1140 |
1180 |
1240 |
1180 |
| Max. torque (N•m) peak |
450 |
590 |
750 |
870 |
980 |
1120 |
1285 |
1360 |
1260 |
1380 |
1370 |
Key Features
- 100% compatible with Parker TG series
- Identical mounting configuration to Parker TG
- Equivalent performance to Parker TG
- Extended service life
- More affordable pricing
Bulk Purchase Options
For bulk importers, we offer special cooperation terms and preferential pricing. Contact us to discuss your requirements.
About Hanjiu Hydraulic
HANJIU is a leading Chinese manufacturer of hydraulic motors, offering over a thousand models for diverse applications in engineering, construction, agriculture, forestry, fishery, ports, docks, and mining industries.
Our motors are trusted by equipment manufacturers worldwide, including mixing machine producers in Italy, sweeping machine manufacturers in the UK, construction equipment makers in Germany, tractor producers in Turkey, and mining rig manufacturers in North America. We also partner with dealers of Danfoss, Eaton, Parker, and White products.
Equipment manufacturers and hydraulic distributors are invited to contact us to discuss how we can meet your specific requirements.
